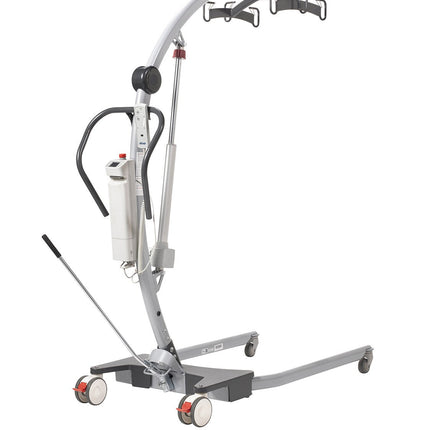

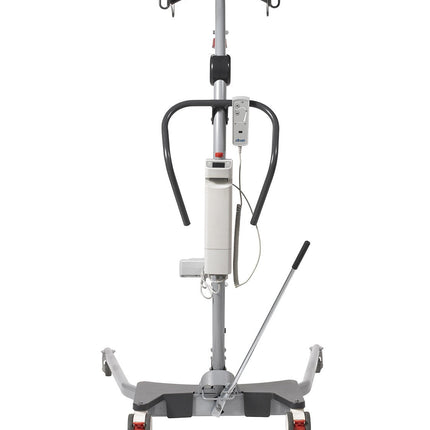

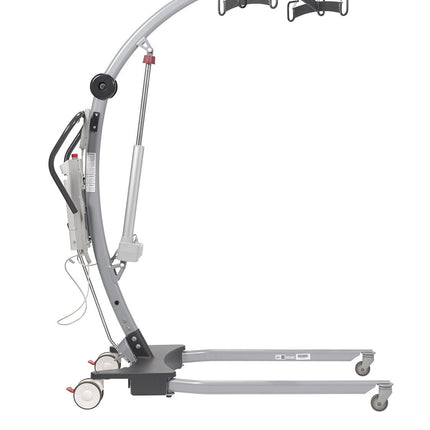

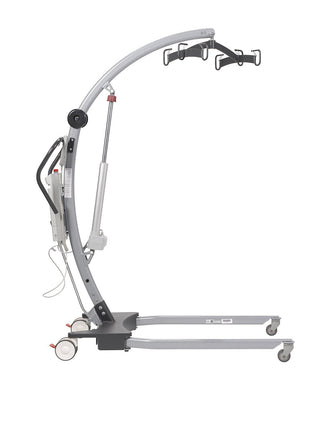

LEVANTAR Floor Lift, Manual Base 500 lbs

Description

Weight capacity of 500 lbs
Base option: Manual
Elegant, contemporary design with soft lines but still heavy duty
Oversized sealed rear casters roll easily and lock securely
Easily lifts resident from floor
Redundant controls allow for use even if hand control is inoperable
Smart & Safety Technology – LCD display

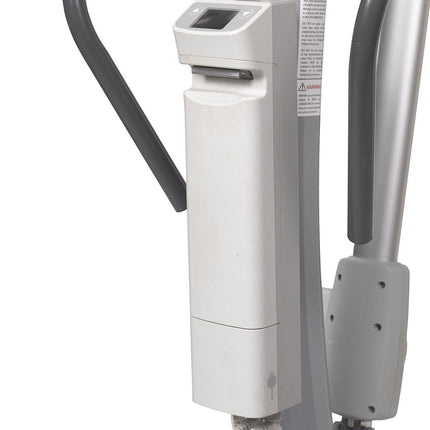

Visual battery fuel indicator on Hand Pendant and Lift Control Module
Auditable low battery alert fuel indicator
Lift safety stop if resident or caregiver accidentally gets in the way of the boom arm
Audible Alert if the lift detects weight overload
Maintenance monitoring: by months or lift cycles
Audible Alert that maintenance is due

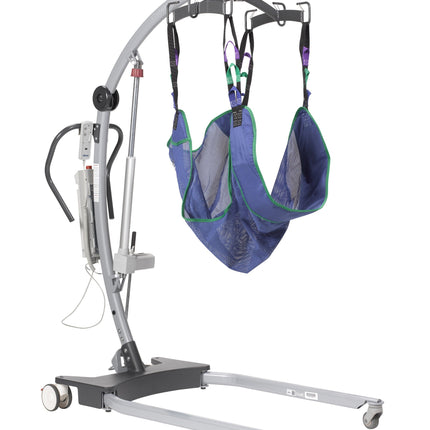

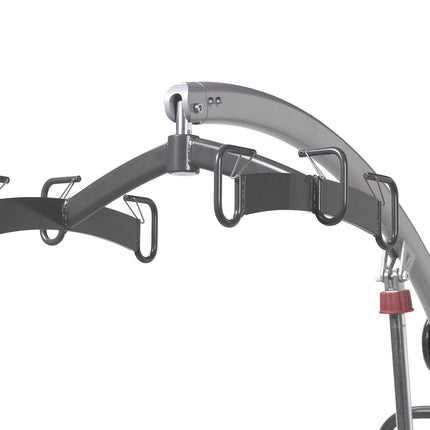

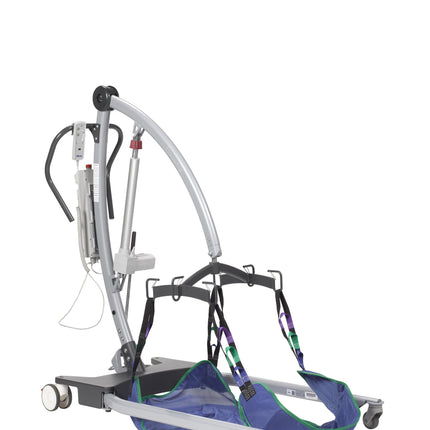

NEW Six-point cradle with spring clips offer a more secure and wider foot print reducing sling squeeze, shallow height offers greater height range
Can be charged on, or off the lift
Includes 1 battery and external charger stand

Specs

Safety Working Load	Levantar 500 lbs, 227 kgs
Maximum Overall Length	52”
Maximum Overall Height	76.3”
Minimum Overall Height	27.7”
Maximum height at hook	6.9”
Minimum height at hook	2.1”
Height at maximum reach	37.8” from mast axis, 38.8” from deepest mast arc
Reach at maximum height	32.4” from mast axis, 33.4” from deepest mast arc
Turn diameter	55.9”
External width when open	45.8”
Internal width when open	40.3”
External width when closed	31.6”
Internal width when closed	26.1”
Height of legs	5.3”
Ground clearance	2.9”
Front caster	3”
Rear brake caster	5”
Net weight	132.2 lbs
Gross weight	156.5 lbs
Battery Pack weight	7.9 lbs (5.0A), 4.9 lbs (2.9A)
Lift Frame	Lifetime Limited
Electronics	5 yr
Battery/Hand Control	1 yr

Product form

SKU: FLNP500
Barcode: 822383990859

$2,599.99

Weight capacity of 500 lbs
Base option: Manual
Elegant, contemporary design with soft lines but still heavy duty
Oversized sealed rear casters roll easily and lock securely
Easily lifts resident from floor
Redundant controls allow for use even if hand control is inoperable
Smart & Safety Technology – LCD display
Visual battery fuel indicator on Hand Pendant and Lift Control Module
Auditable low battery alert fuel indicator
Lift safety stop if resident or caregiver accidentally gets in the way of the boom arm
Audible Alert if the lift detects weight overload
Maintenance monitoring: by months or lift cycles
Audible Alert that maintenance is due
NEW Six-point cradle with spring clips offer a more secure and wider foot print reducing sling squeeze, shallow height offers greater height range
Can be charged on, or off the lift
Includes 1 battery and external charger stand

Specs

Safety Working Load	Levantar 500 lbs, 227 kgs
Maximum Overall Length	52”
Maximum Overall Height	76.3”
Minimum Overall Height	27.7”
Maximum height at hook	6.9”
Minimum height at hook	2.1”
Height at maximum reach	37.8” from mast axis, 38.8” from deepest mast arc
Reach at maximum height	32.4” from mast axis, 33.4” from deepest mast arc
Turn diameter	55.9”
External width when open	45.8”
Internal width when open	40.3”
External width when closed	31.6”
Internal width when closed	26.1”
Height of legs	5.3”
Ground clearance	2.9”
Front caster	3”
Rear brake caster	5”
Net weight	132.2 lbs
Gross weight	156.5 lbs
Battery Pack weight	7.9 lbs (5.0A), 4.9 lbs (2.9A)
Lift Frame	Lifetime Limited
Electronics	5 yr
Battery/Hand Control	1 yr
